MACHINERY

Irons / Flatwork ironers

HYBRID IRONER

HÍBRIDA

Flexible heating system with free of choice electric or gas heating.
Possibility to mix both heating systems, for each program.
Automatic software adjustment for both heating systems.
Very low electrical and gas consumption : only 0.36 Kw/Kg linen for electrical or 0.048 m³G/Kg linen for Gas.
Very high efficiency, limited energy losses.
No external heat sources required.
Automatic speed adjustment according to temperature fluctuation.
Available on D500/D600/D800 and D1200 models,
from 65 Kg to 460 Kg/hour.

COMFORT FLATWORK IRONERS 500/600/800

Planchadoras

Up to 250 kg/hr.
Heating: steam/gas/electric
Patented flexible steel chest.
Working width from 2m till 3.3m.
1, 2 or 3 automatic longfolds in 1 lane and 2 or 3 crossfolds (sheet comes out on the stacker)
1, 2 or 3 automatic longfolds in 1 or 2 lanes (sheet comes out below to the front)
When no longfolds (sheet comes out at the back on the table or on top to the front)
Automatic feeding with feeding clamps in 1 lane. 1 person can feed up to 240 pieces / hour.
Manual feeding for small pieces in multiple lanes.

CALANDRA D370/D500/D600/D800

From 48 kg/h to 250 kg/h.
Patented flexible steel bowl.
Heating: gas/steam/electric:
Working width from 1.75m to 3.3m.
Very low power consumption 0.38kW/kg

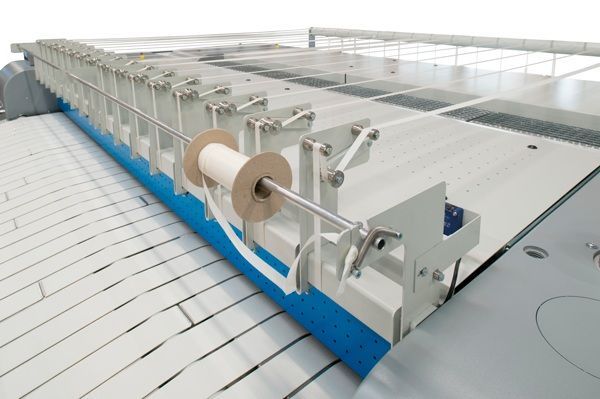

FLATWORK IRONERS - MODELS D802_D803_K802

Flatwork ironers

Up to 990 kg/hr.
Thick steam chest with hinges.
Working width from 2.5m till 3.5m.



FLATWORK IRONER_ MODEL D1200_D1202_D1203

Calandres

From 230 to 1450 kg/h.
Heating: steam/gas
Hinged thick steam bucket.
Working width from 2m to 4m.



SECOM FLATWORK IRONERS M60/M70/M80 GAS

Up to 80 kg/hr.
Patented flexible steel chest.
Gas heating power: 35 kW.
Working width 2.5m.
Very low energy consumption (0.38kW/kg)

SECOM FLATWORK IRONERS M30 ELECTRIC

Up to 30 kg/hr.
Production capacity up to 30 kg/hr.
Electrical heating power: 15 kW.
Working width 1.8m.
Very low energy consumption (0.38kW/kg)

LACOFOLD

Lacofold Evo
Aut. length folding machine
1,2 or 3 Primary folds
1,2,3 or 4 lanes
Manuel Bypass
Receiving table 600mm
Aut. speed synchronization
Long fold max. 3.0m
Max. folding width 3.3m
Primary folds by air blast, adjustable in
time and for each program (digital)
Adjustable air blast pressior
for each program
Aut. lanes coupling
Machine mounted on wheels
Test program for all functions
Color touch screen 5.7”
